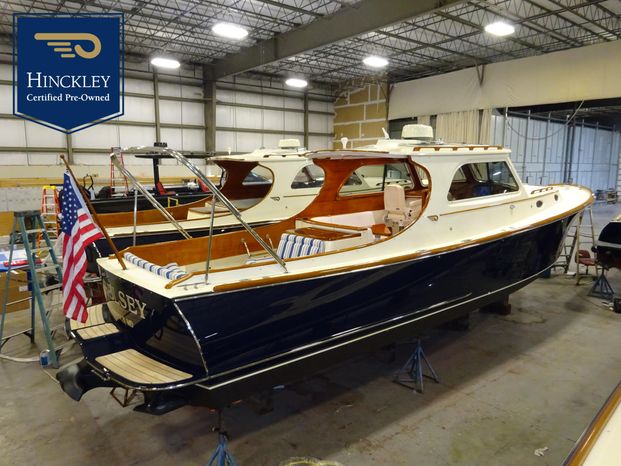

2004 Hinckley Picnic Boat EP

VESSEL WALKTHROUGH

INTRODUCTION:

The Picnic Boat EP (Extended Pilothouse) sleeps two comfortably forward and includes head with shower, and galley.  An L-shaped settee with table and two forward-facing Stidd seats are in the pilothouse. CHELSEY has fresh electronics, fabrics, eisenglass curtains, air conditioning and many more options/ features that make her not only an elegant day cruiser but a comfortable weekender as well.



CHELSEY’s significant features include:

• Recent paint, varnish, cushions, and canvas
• Garmin electronics
• Pilothouse and cabin air conditioning
• Engine driven generator for air conditioning underway
• Recent hatches, headliner, and OceanAir shades
• Fusion stereo with additional amplifier and 10” cockpit speakers
• Custom bimini top
• Anchor windlass with fold-out bow roller in anchor locker
• Varnished teak wood package
• Varnished teak handrails
• New combination inverter/charger
• Hinckley maintained and stored



CHELSEY’s recent work items include-

Winter 2022-2023

• Jetboat Service Package
• New holding tank (extensive replacement project)
• New LP system
• New custom mattress pads and sheets
• Repaired leak at windshield wiper motor
• New air conditioning hoses
• New oil transfer pump impeller
• Rebuilt bucket hydraulic ram, new shaft
• New engine cooler engine hoses, clamps, and end caps

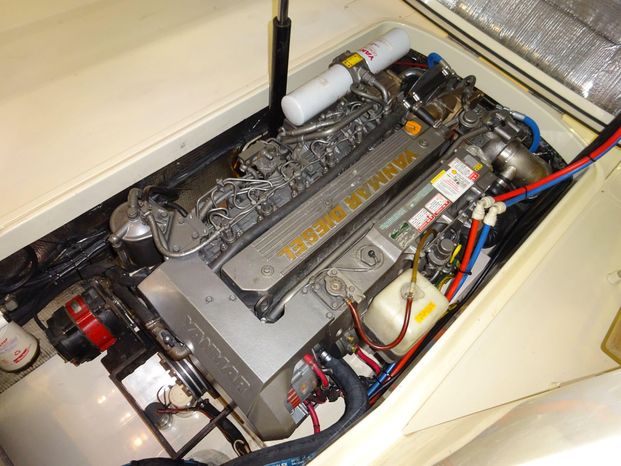

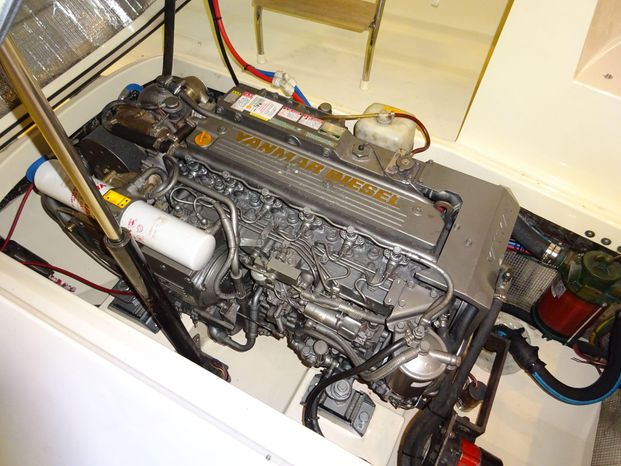

• Cleaned and painted engine
• Cleaned engine space while engine is removed
• New engine mounts
• New transmission cooler hoses
• New paint on drive shaft
• New hydraulic manifold (Hope) box
• All new fasteners on swim platform
• New starboard exhaust 4” through hull fitting
• Adjust grill and sink lid hardware for proper alignment
• Clean and lubricate window tracks
• Adjust head drawer for proper opening and closing
• Gelcoat repairs to starboard side of house near Talaria
• New shower sump box



Summer 2022

• Replace spot light control box
• Adjust bilge pump float switches
• Recalibrated autopilot



Winter 2021-2022

• Jetboat Service Package
• New Kahlenberg Zero series A-23 S-OA air horn and compressor
• Strip and apply 10 coats to engine box top
• New radar dome paint
• Various gelcoat and paint touch-ups
• Added dimmer to pilothouse lights and replaced lights with Lumitec Mirage LED lights
• Added varnished binocular holder
• New Vacuflush toilet seat
• New turbocharger exhaust gasket
• New cockpit drain hoses
• Re-bed port side pilothouse window, inspect and clear drains
• New mixing elbow hose and clamps
• New water heater bypass hoses
• Added water heater coolant hose shutoff valve
• New head system vent hoses
• New engine stop button
• Clean and protect jet steering linkage rod and hardware
• New house AGM batteries (2)
• Added 10” cockpit speakers and Fusion amplifier
• 3-4 coats of maintenance varnish to the toerail, handrail, eyebrow, logo, coaming cap and flats
• New Magnum inverter charger with new remote panel
• New GFCI outlets
• Add second midship cleat easily reachable from the cockpit
• New extended-length chafe strip to protect toe rail in way of new second midship cleat
• Reattach heat shield to bottom of grill lid
• New A/C through hull fitting



Summer 2021

• Fabricate, paint, and install v-berth filler panel and cleats
• Repair engine oil pressure gauge
• New alternator pulley



Winter 2020-2021

• Jetboat Service package
• New witch’s caps and intake strainers
• New spotlight
• New carbon monoxide detector
• New smoke alarm
• New engine coolant and raw water hoses
• Rydlime flush engine
• Clean and paint engine mounts
• Rebuild sea strainer
• Clean and protect steering brackets and feedbacks
• Re-tape engine box insulation
• New hose clamps in pilothouse bilge space
• New head sink drain hose
• Paint heat exchangers and replace gaskets
• New propane bottle
• Adjust hardware on flip-down door on engine box
• New crutch tips on boarding ladder
• New spring hold-open on galley flip up door
• New Lewmar overhead hatches (four pilothouse, one cabin)
• New varnished trim rings for all overhead hatches
• New OceanAir roller shades for all hatches
• New v-berth headliner panels
• New mooring cover snaps
• New mooring cover bolt rope track
• New port light screens
• Gelcoat filled holes on hardtop and engine box
• New anchor locker gasket
• New swim platform quarter round chafe protection
• New tumblehome quarter round chafe protection
• New teak decking on swim platform
• New paint on swim platform, including underside
• New swim ladder webbing
• New swim ladder assembly
• New windshield washer nozzles and hoses
• Remove old rooftop antennas and gelcoat holes

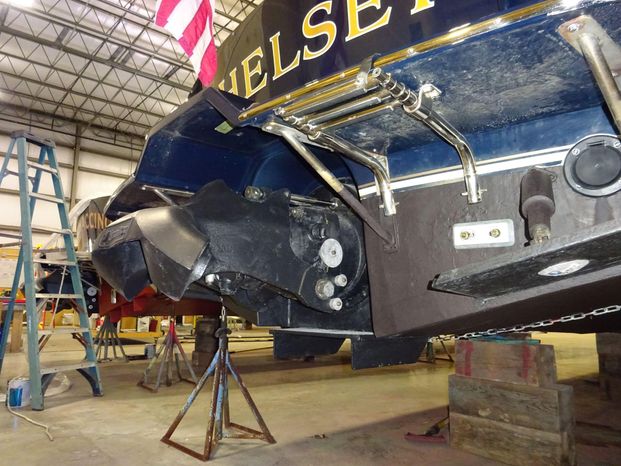

• New jet cutlass bearing
• New reversing ram resilient seals
• New steering ram seals
• Paint side window exterior frames
• Re-terminate battery cable ends
• New windshield wiper dual power switch
• Multiple electrical fuse, terminal, and wiring improvements
• Replace Wells combiner with Blue Sea ACR
• Added alternator feed fuse
• Reattach shower sump hold-downs
• New air conditioning strainer basket
• New cockpit sink faucet
• New cockpit shower nozzle and hose
• New cabin sink faucet
• New bathroom sink faucet



2020

• New pilothouse headliner
• New Garmin electronics suite
• New cockpit and pilothouse cushions
• New eisinglass three-piece enclosure

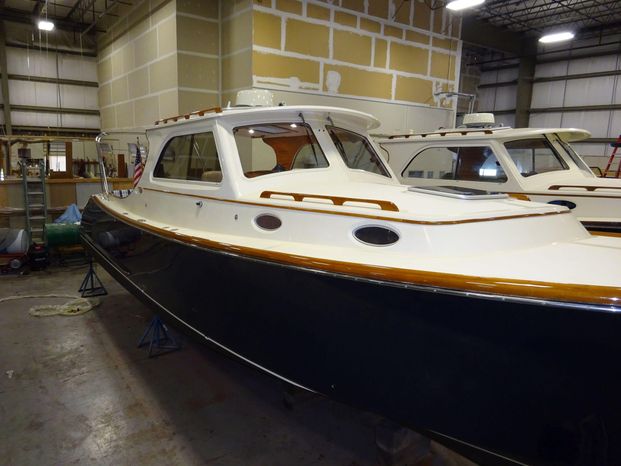

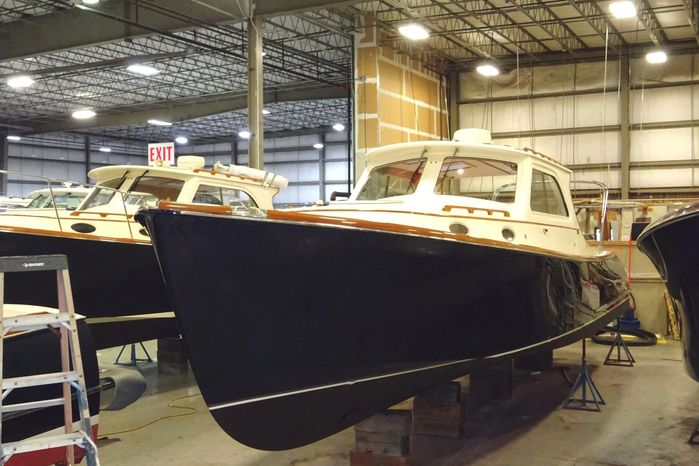

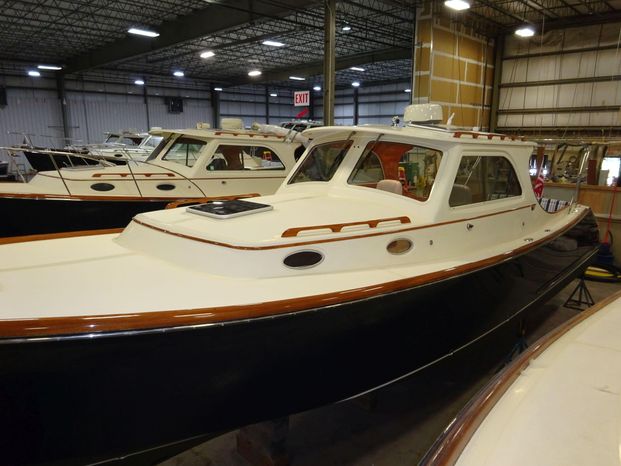

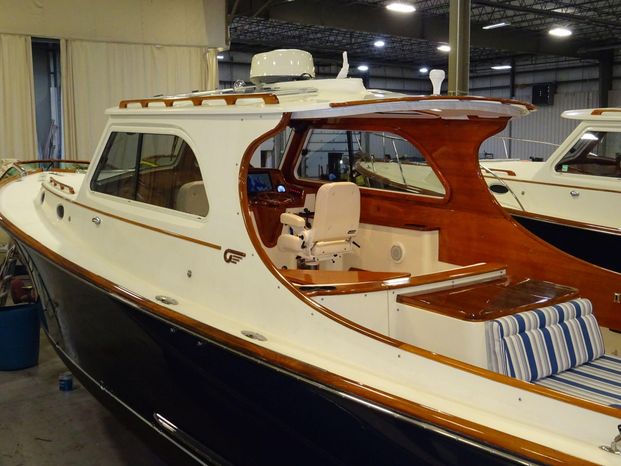

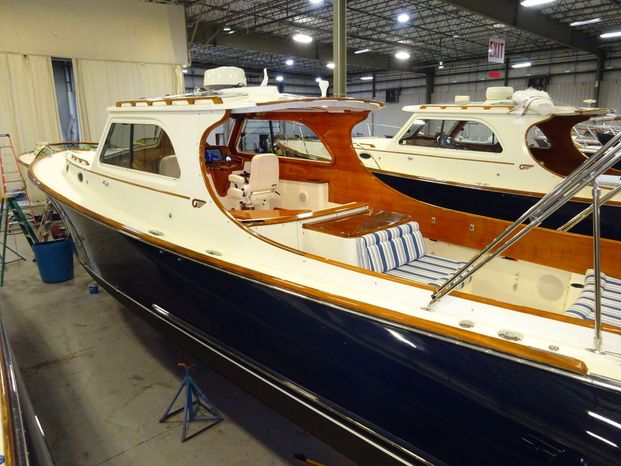

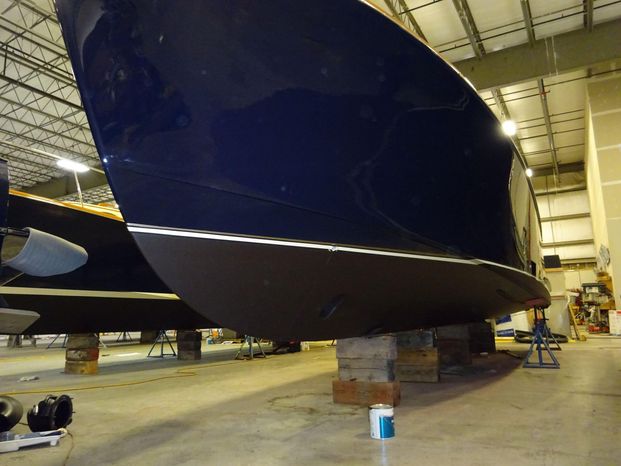

CONSTRUCTION:

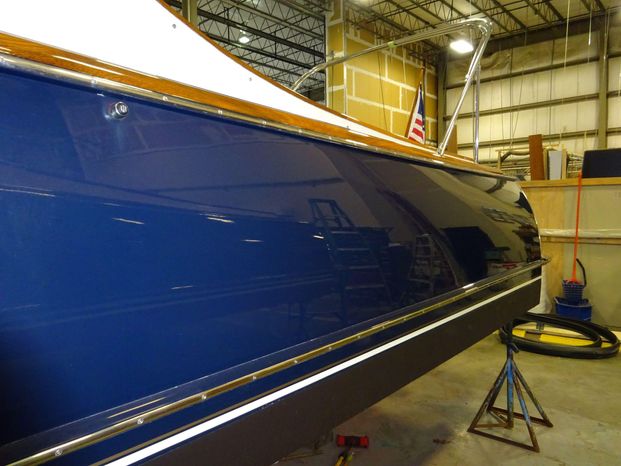

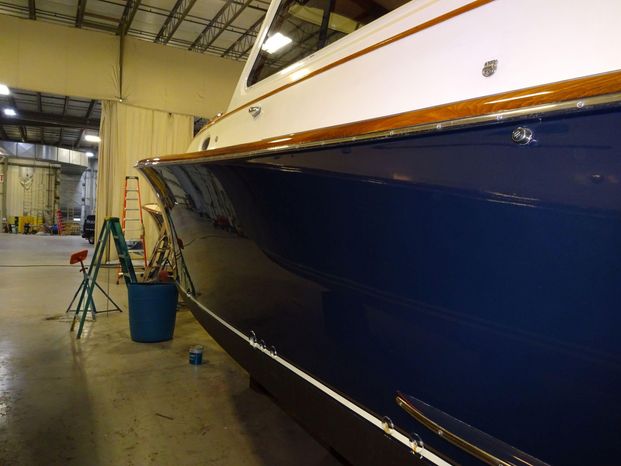

• Flag Blue Awlgrip topsides
• Light Cream gelcoat cabin house and deck
• Light Cream single bootstripe with gold accent line
• Black bottom paint



Construction of the hull is Hinckley DualGuard™ Composite Construction Kevlar E-glass hybrid outer skin; Aircraft grade end grain balsa below the waterline; Carbon fiber inner skin and SCRIMP® laminated with vinylester resin.  Deck and cockpit are E-glass and balsa core and Corecell® core carbon fiber, SCRIMPED with vinylester resin.

• The deck sole has a molded-in nonskid pattern.

• Marelon ball-valve seacocks with thru-hulls below water line and Marelon thru-hulls above the waterline.
• Stainless steel half round on fiberglass molded rub rail

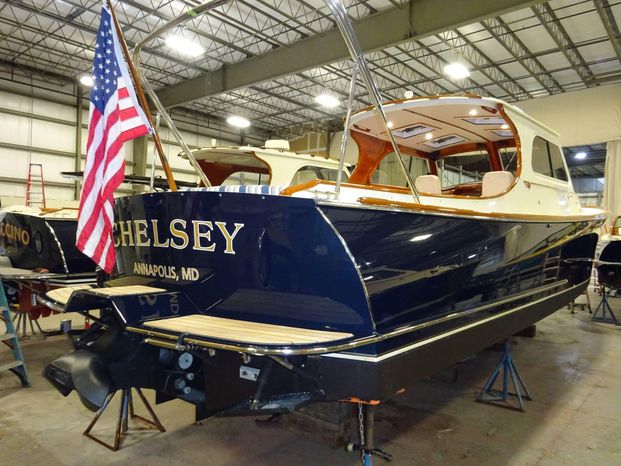

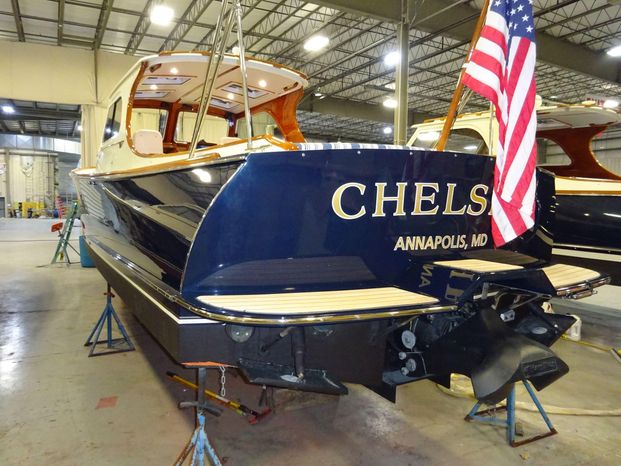

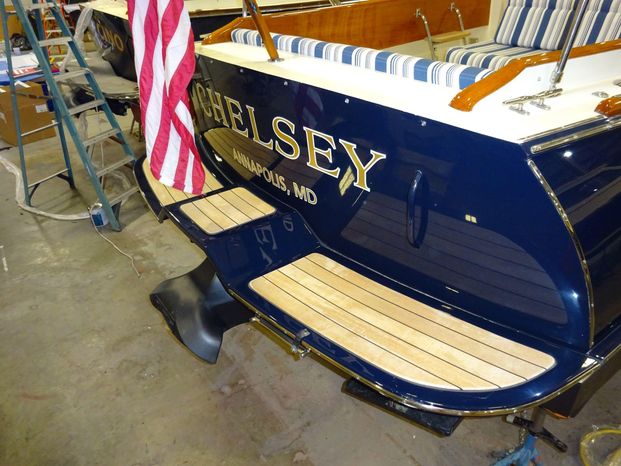

Heavy-duty fiberglass swim platform has teak insert treads, stainless steel brackets and half round

• Stainless steel telescoping 3-step folding swim ladder that stores under platform
• Handrail mounted vertically on transom, painted to match hull color

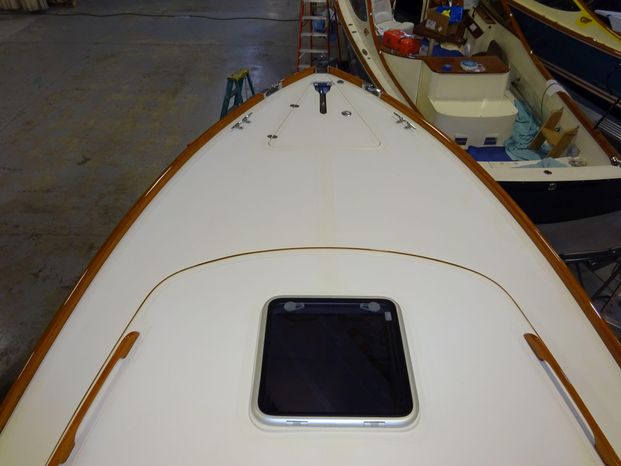

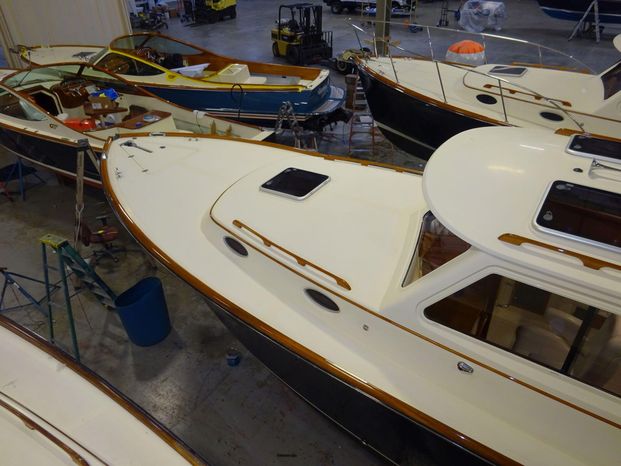

Deck features:

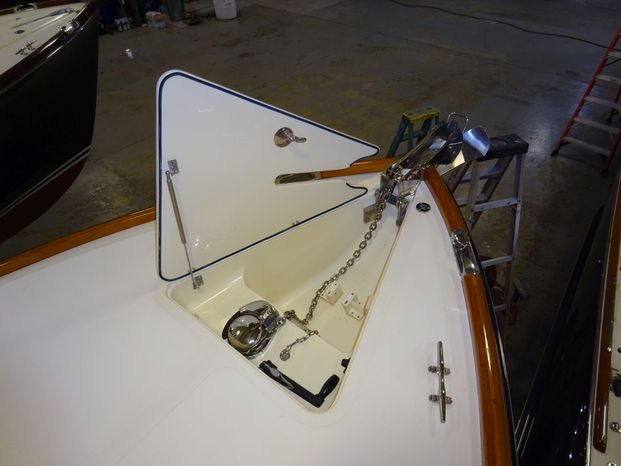

• Flush foredeck anchor locker with hinged hatch cover
• Rounded, tapered, varnished teak toe rail with Hinckley profile

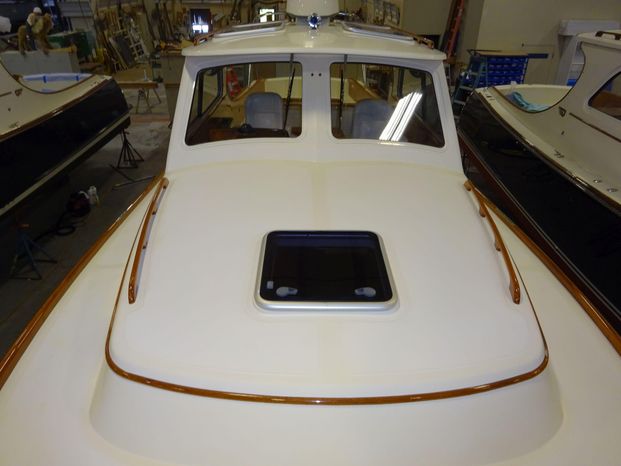

• Varnished teak eyebrow molding around cabin top
• Varnished teak handrails on the house top, pilothouse top and aft end of pilothouse
• Four (4) elliptical ports on house sides (all opening with screens)

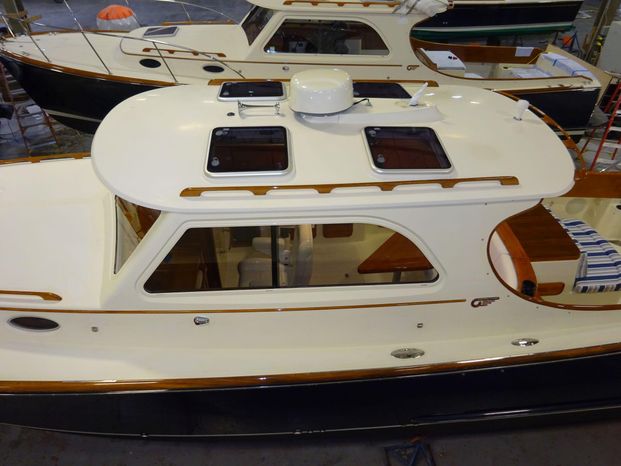

• Hinckley pilothouse mast with spotlight and radome painted to match deck.
• (5) Low profile opening aluminum hatches each with Ocean Air Screen/Blind system
• Custom Hinckley 316L stainless steel bow chocks
• Bow and stern 316L fixed stainless steel mooring cleats
• Two midship  “pull-up” cleats easily reached from cockpit
• Padeyes to hang fenders with stainless steel toe rail chafe strips
• Custom tumblehome chafe guards

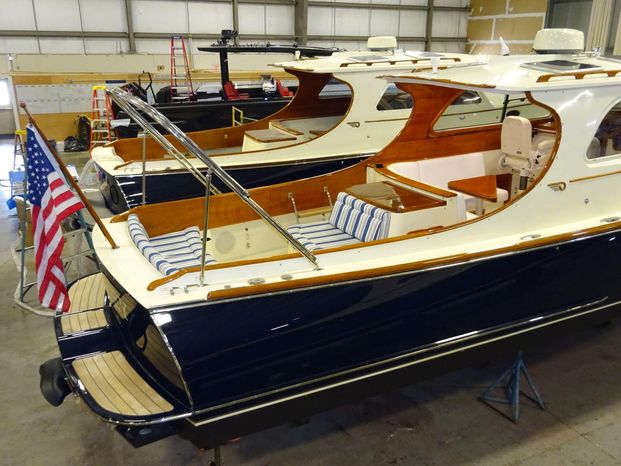

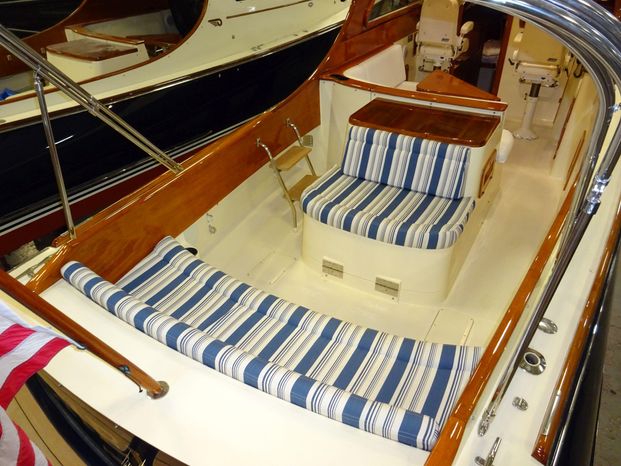

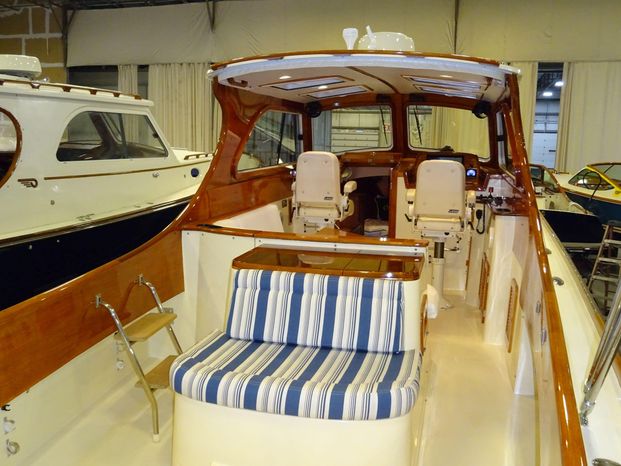

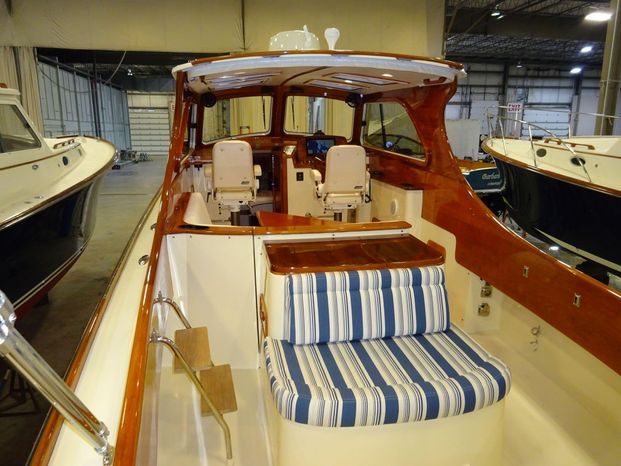

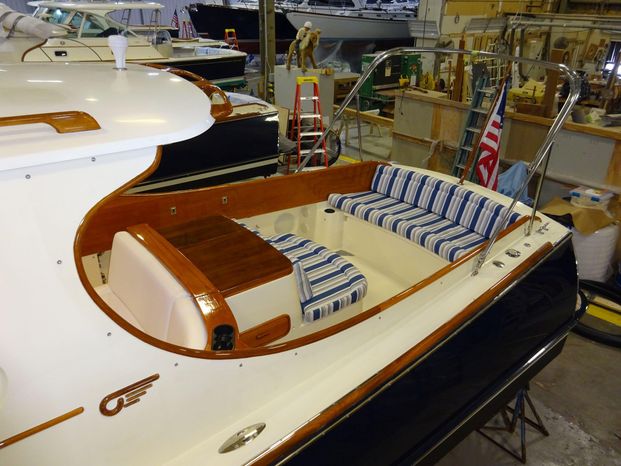

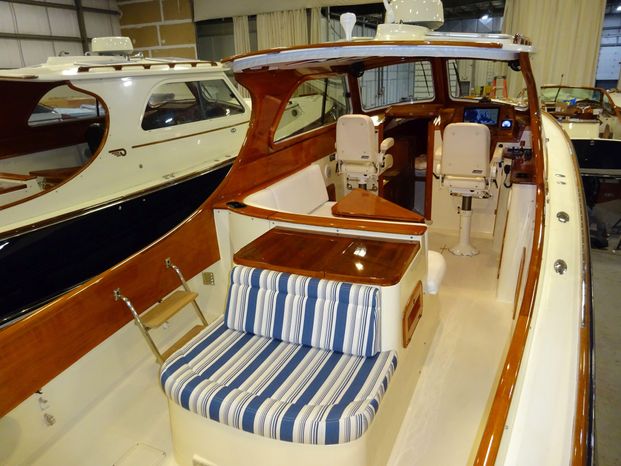

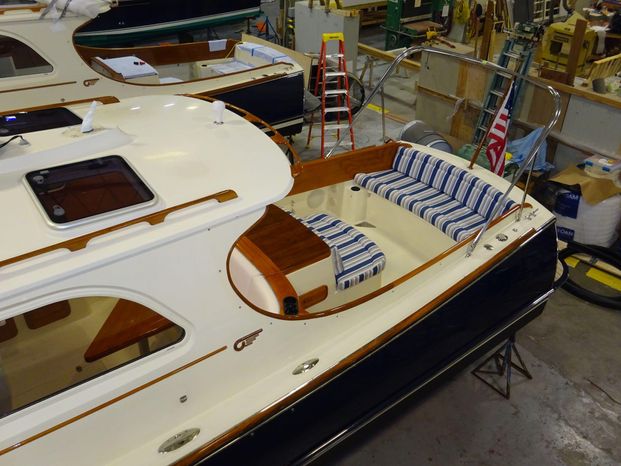

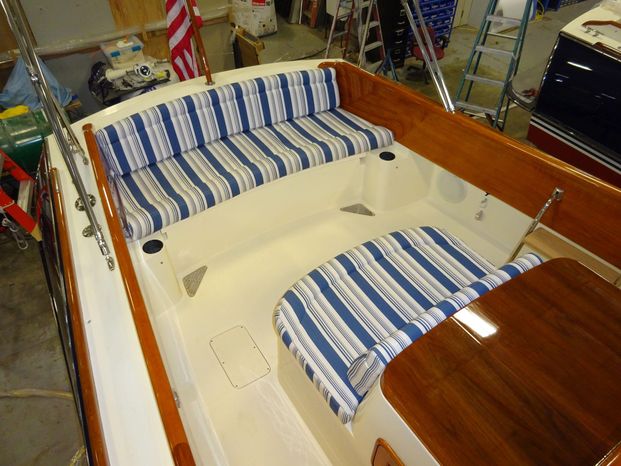

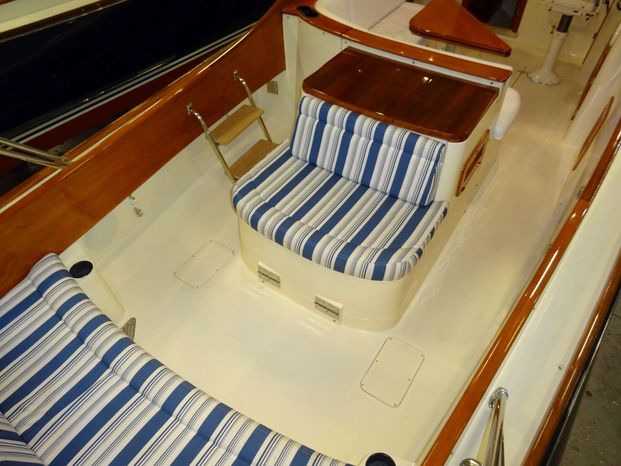

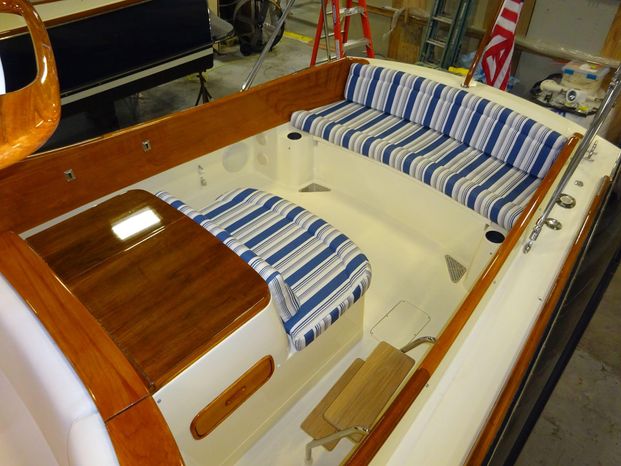

COCKPIT

• Teak cockpit coaming
• Courtesy lights under side decks port and starboard - with dimmer switch at helm

• Cockpit sole has molded-in nonskid and direct overboard drainage scuppers
• Custom removable bimini top

• Cockpit lockers with varnished louvered teak doors
• Cockpit shower with mixing valve is located in forward face of stern seat.
• Fishing rod holders port and starboard in aft deck sides
• Rupp aluminum rod holders mounted under cockpit coaming
• Force 10 BBQ LP gas grill
• (2) 10” Fusion stereo speakers for excellent acoustics



Entry to the cockpit:

• A stainless steel cockpit step with teak treads that mounts port or starboard with stainless steel brackets.

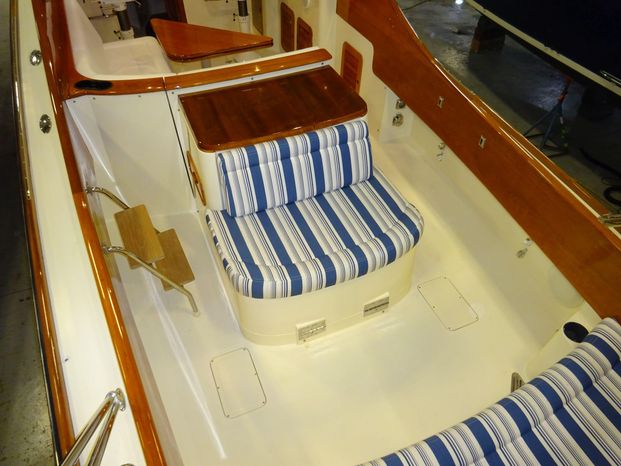

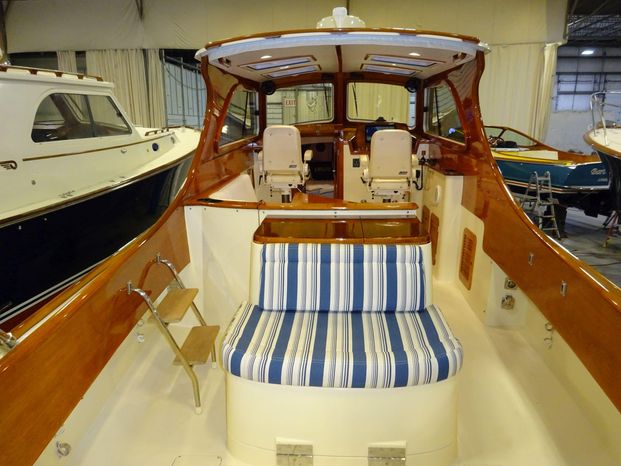

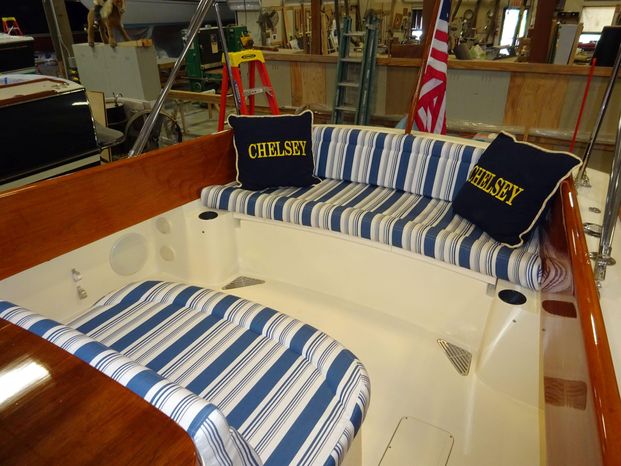

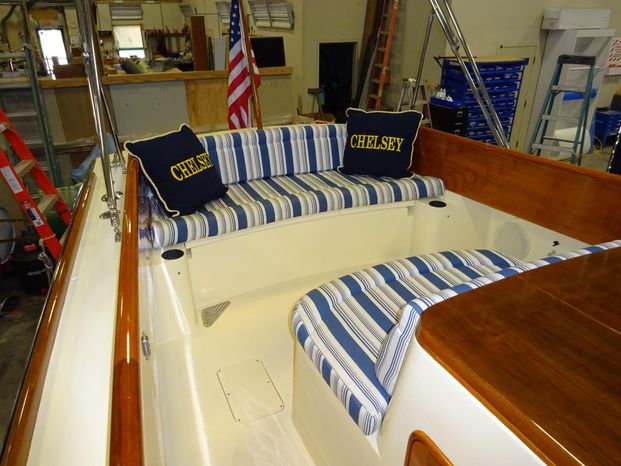

Forward facing seating at transom and aft facing seating on engine box is upholstered:

Seat Backs: Indigo Stripe

Seat Bottoms: Indigo Stripe

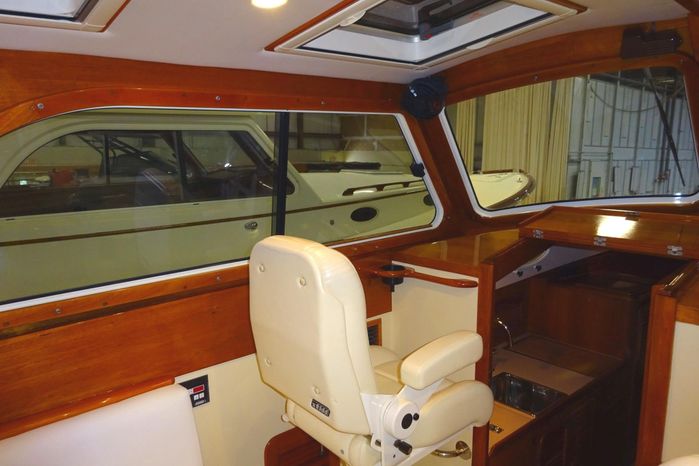

The wet bar at the aft end of the pilothouse includes a molded sink with foldaway faucet and hot and cold pressure water to starboard. To port in the unit is a Force 10 Propane BBQ grill. The sink and grill have a varnished teak cover.  The entire engine box/wet bar and seat is hinged on the aft end and has electric lift for easy access to the engine.

Aft, a full-width settee has back and seat cushions finished in matching wide blue and white stripe fabric that matches the forward seat. Aft settee includes two hinged lids under the cushions to allow access to removable storage tubs and to access bilge areas. There are cup holders just forward of these cushions on either side.  An ivory color cockpit cover attaches to pilothouse with snaps around cockpit coaming.

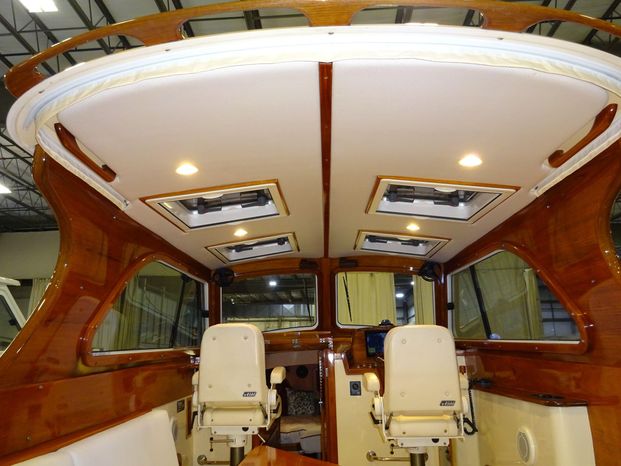

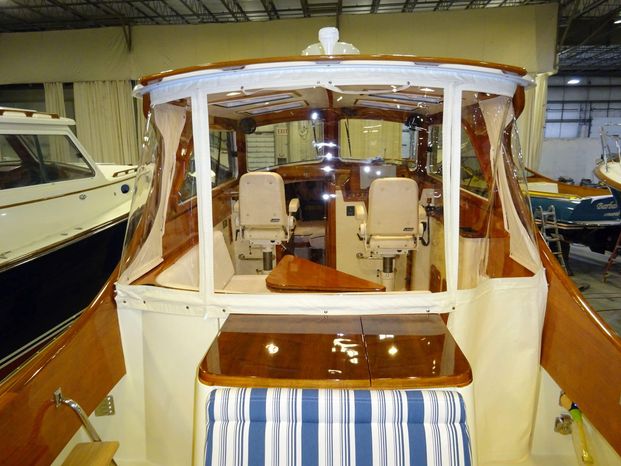

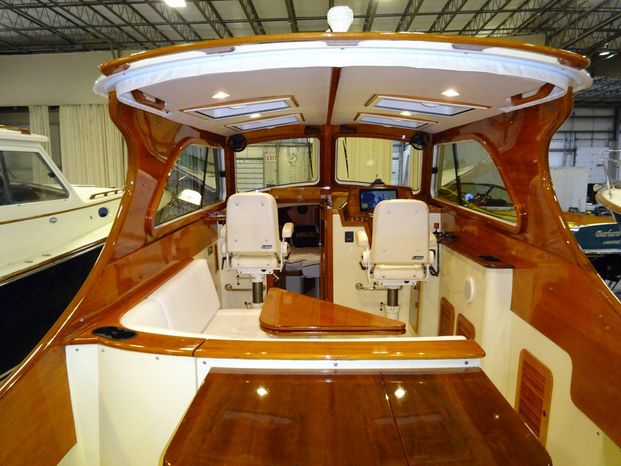

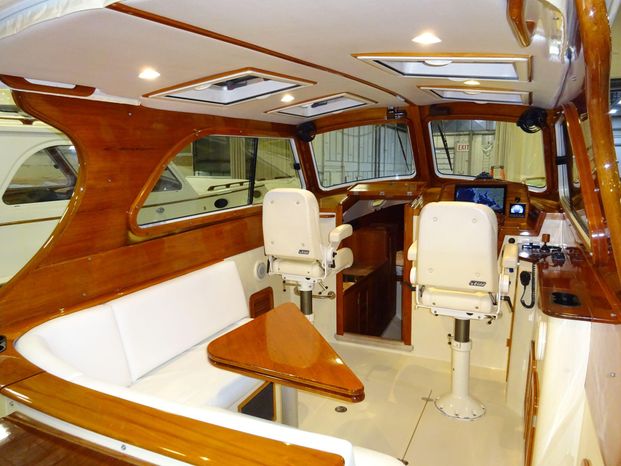

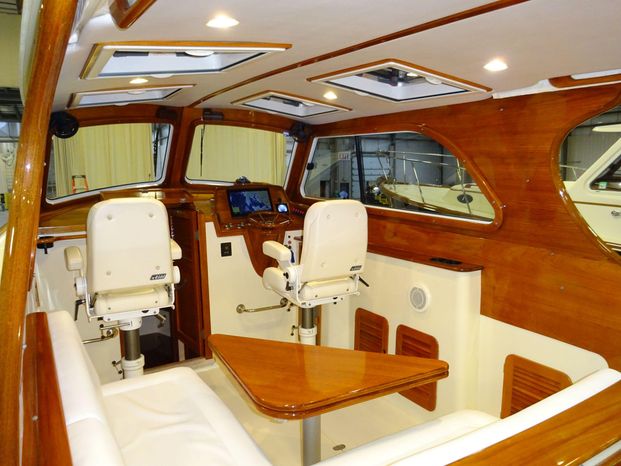

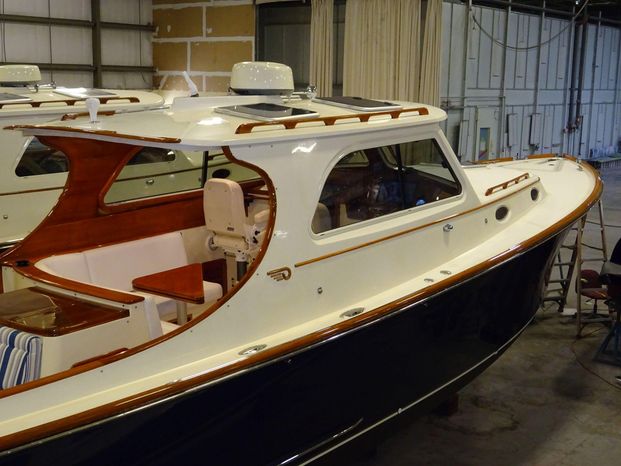

PILOTHOUSE (Extended Style):

• (2) Sliding side windows and (2) fixed forward windows
• Heavy duty, self-parking, intermittent windshield wipers and fresh water washers
• Pilothouse sole has molded-in non-skid
• Teak finished pilothouse instrument pod, pilothouse liners, dash and cockpit coamings
• Insulated white overhead has four (4) acrylic opening hatches with Ocean Aire screens/shades
• Additional illumination is by four overhead LED lights on dimmer switch
• Air- Conditioner in locker under pilothouse settee
• Pilothouse has two AC duct outlets
• (2) Hella fans – Removable and mounted outboard forward port and starboard
• (5) Cup holders



The pilothouse interior has a varnished teak locking companionway door as well as:

• Two varnished teak handrails are under the aft outboard ends of the pilothouse cabin top
• Cream sound-dampening acoustic headliner
• Ivory-color drop curtains with windows provide a fully enclosed pilothouse
• Ivory-colored interior window sun covers for all four pilothouse windows

Forward:

Stidd helm and passenger seats are on powder-coated pedestals that can be adjusted fore and aft and up and down.  Forward stainless steel footrest for helm and passenger seat on bulkhead.  These seats are finished in Light Cream Ultra-Leather.



Forward to Port:

Forward passenger area includes a varnished teak integral handrail/cup holder on the forward bulkhead.  Outboard are controls for the Mobil Power engine driven generator and Air Conditioning.   Below the switches is a louvered door locker outboard of the navigator seat pedestal.

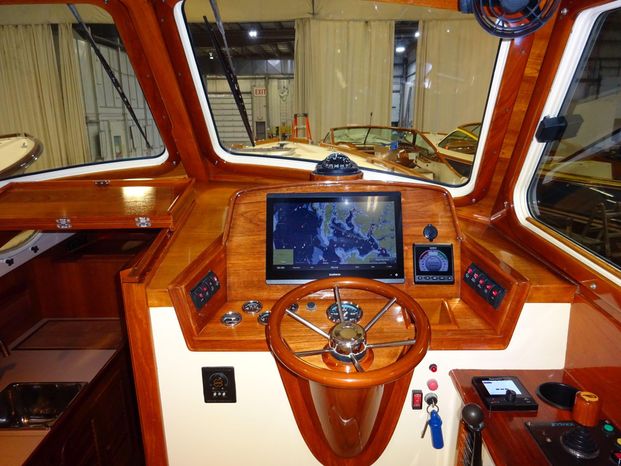

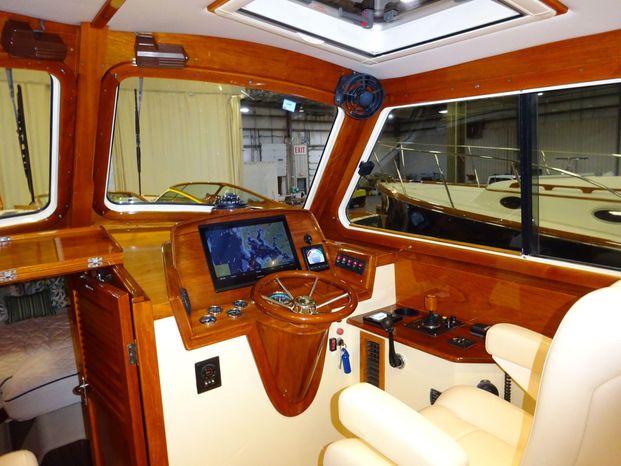

Helm Station (Starboard):

• Varnished teak custom instrument pod
• Stainless steel steering wheel with varnished wood rim
• Hinckley Jet Stick control panel
• Engine gauges, tachometer with hour meter, oil pressure, water temperature, jet nozzle direction indicator
• Top-opening locker with chart storage
• 12-volt “cigarette style” outlet in chart pocket
• One single and one double cup holders

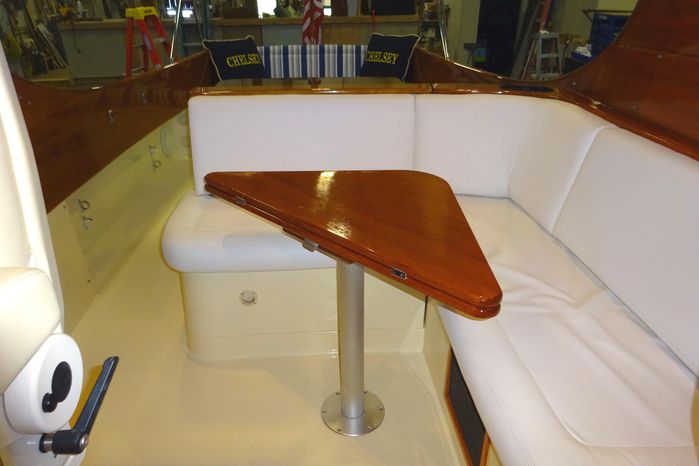

Aft Pilothouse:

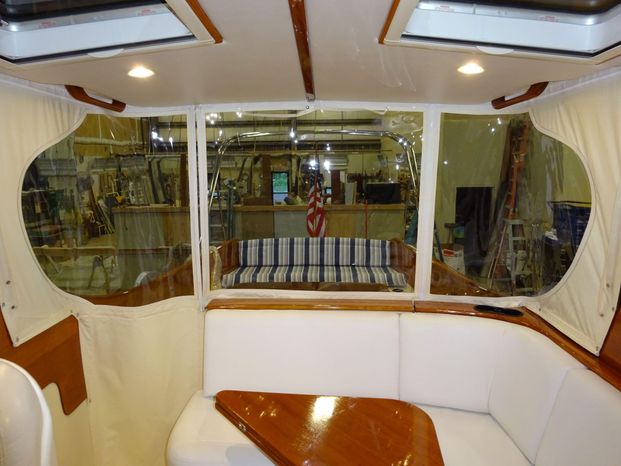

Next aft, the extended pilothouse roof shades additional seating with a L-shaped settee with varnished teak shelf rim to port that faces inboard and forward. This area is upholstered in a white waterproof fabric.



• Triangular varnished teak table opens to form square
• Two additional cup holders on shelf behind L-settee.





ELECTRONICS and NAVIGATION EQUIPMENT:



Helm Electronics/Nav Equipment:

• Garmin 8616xsv color multifunction display/chartplotter
• Raymarine p70Rs autopilot
• Garmin 4” GMI 20 display
• Garmin 18” GMR
• Icom M402 VHF Radio

• Ritchie compass
• ACR spotlight with helm-mounted remote control



Entertainment Electronics:

• Fusion Stereo MS-RA70 with Fusion Signature Series amplifier
• (2) Fusion 10” speakers in aft cockpit
• (2) Alpine SPS-1629 speakers on V-berth forward bulkhead
• (2) Alpine STM6666 speakers in pilothouse.





INTERIOR ACCOMMODATIONS:

The interior is finished in satin-varnished cherry, including sheathing. The cabin sole is varnished teak and holly and has a Sunbrella cabin sole cover.

• Opening overhead hatch with Ocean Aire sky screen/shade
• Four (4) opening port lights with screens



INTERIOR LAYOUT:

From the pilothouse companionway is the Galley to port, private Head to starboard and the V-berth accommodations forward.

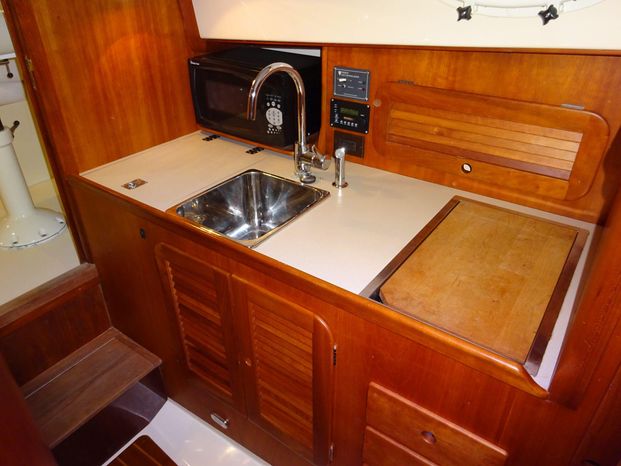

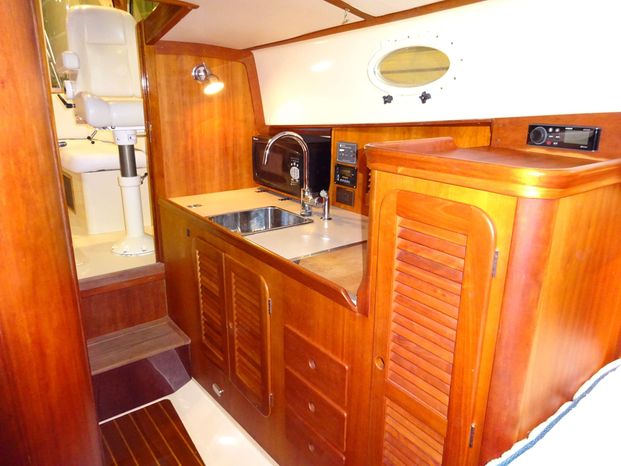

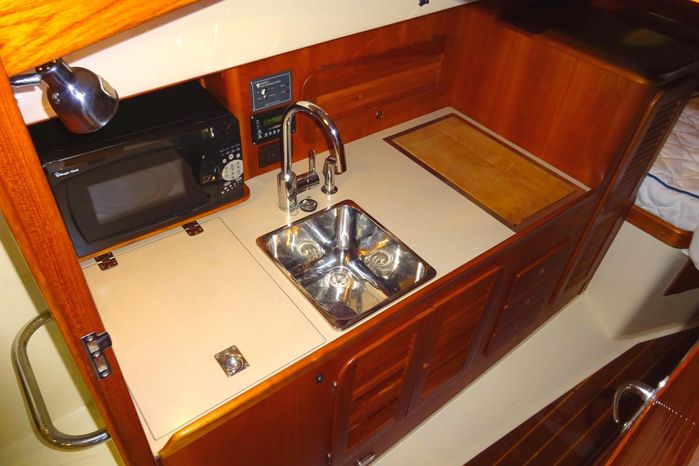

GALLEY (Port)

The stove is set in the countertop forward and has a custom wood stove cover/cutting board which adds to the already ample counter space surrounding the sink. Microwave is outboard. The refrigeration is mounted aft of the sink and is accessed by a counter lift-up top. A pantry locker with louvered door and several shelves separates the galley from the forward V-berth area.  Above is the stereo.

• Clear Beige Sand Formica countertop
• Stainless steel sink with Grohe fixtures and spray nozzle
• Hot and cold pressure water.

• Adler Barbour refrigeration – 12-volt cold plate refrigerator in a self draining box
• Force 10 two-burner stainless steel stove with remote propane shut-off and wood cover/cutting board
• Microwave 600-watt 110-volt oven
• 110-volt outlet
• Pullout under counter garbage receptacle
• (3) Cherry pullout drawers
• Red step light in galley
• LP gas sniffer
• Propane shut-off valve
• Opening port with screen
• Additional storage is provided outboard and under the galley sink.

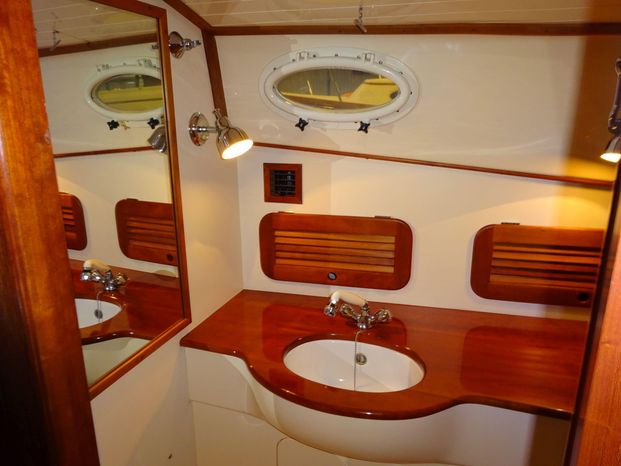

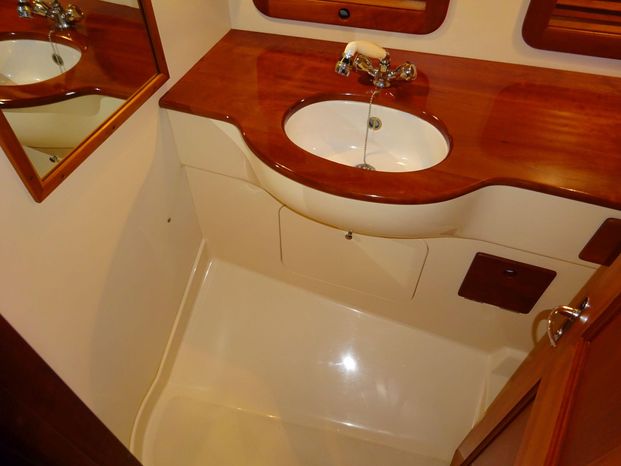

HEAD (opposite starboard)

• Solid cherry door panel door
• Molded fiberglass sole for easy cleaning
• Varnished cherry countertop with an undermounted porcelain sink
• Grohe faucet/hand held shower provides hot & cold pressure water - custom mount on bulkhead.

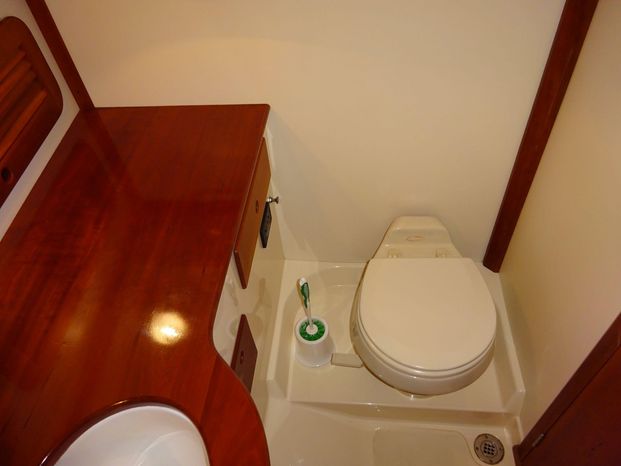

• Sealand Vacu-Flush electric marine head is plumbed to a 27-gallon aluminum holding tank and overboard discharge
• Tankwatch holding tank level indicator
• Mirror on the forward bulkhead with cherry frame.
• Storage is provided by cherry faced lockers above and outboard the vanity, a drawer with a cherry face beside the marine head, and a locker under the vanity.
• 110-volt outlet

• Opening port with screen, as well as forced ventilation
• (2) 12V lights
• Hella 12V fan

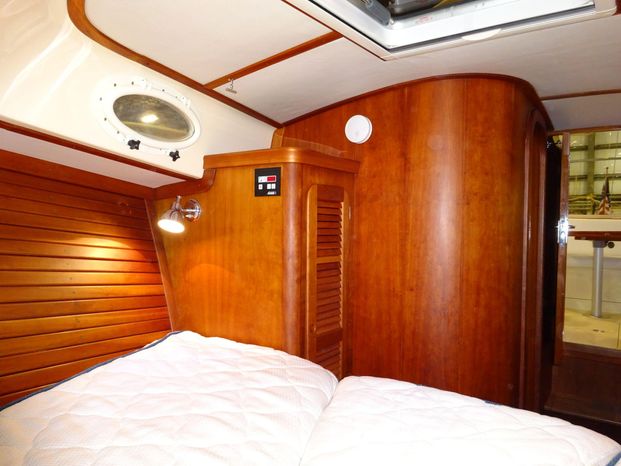

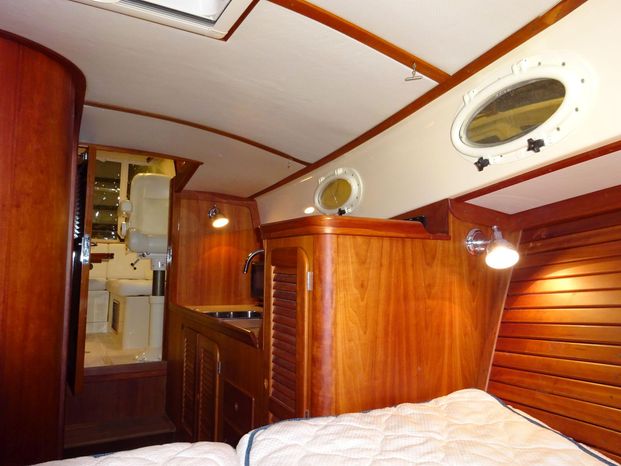

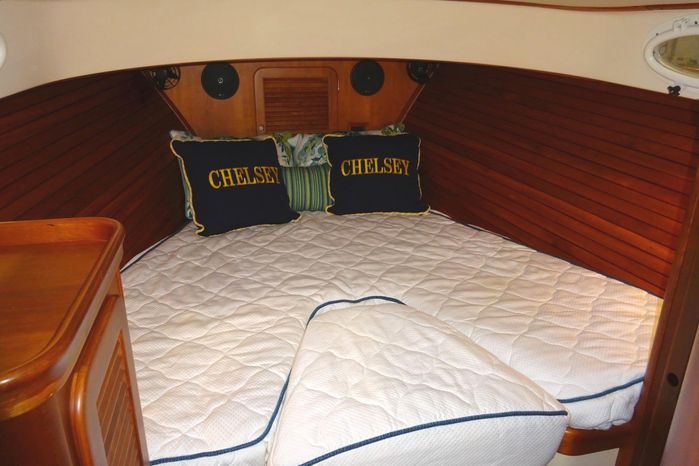

V-BERTH (Forward):

• A double berth is formed with an insert and matching cushion
• Cushions have custom mattress pads and custom sheets

• Storage locker under port V-berth has a shelf accessed cherry drop-front door
• Air conditioning and duct under the opposite berth
• Storage in forepeak behind a louvered cherry door

• Hanging locker is just aft of the V-berths to starboard
• (2) Stereo speakers are mounted port and starboard on the forward bulkhead.
• (2) Hella fans – port and starboard bulkhead facing aft
• Overhead opening hatch with Ocean Air Sky screen/shade





ELECTRICAL SYSTEM

Low resistance, heavy copper and sacrificial zinc anode electrical bonding system:



12-volt DC electrical system:

• (3) 12-volt batteries for a total of 540-amps
• 80-amp battery alternator on engine
• Heavy duty battery parallel switch also allows emergency starting



110-volt 30-amp AC electrical system:

• AC electrical distribution panel, volt and amp meters and DC sub-panel
• 110-volt shore power inlet, relay and shore power cord
• Magnum inverter/charger with galley-mounted display

• Promariner galvanic isolator monitor



Electrical panel includes thermo-magnetic breakers, volt and amp meter.

Mobile Power 110-volt AC engine alternator - Provides 110-volt AC power for air conditioning system.



MECHANICAL EQUIPMENT

• 2004 Yanmar 6LY2-STP 440-hp diesel engine
• Hamilton 292 Jet Drive
• ZF IRM220PL reduction transmission
• Bow thruster- 7” 12V DC powered thruster integrated to JetStick
• Hinckley custom JetStick® Generation 2 integrates forward and aft motion of the boat, the steering, and the bow thruster into a single joystick control
• Trim tabs
• Yanmar fuel filter/water separator
• Tachometer with engine hours gauge
• Fuel, oil pressure, and water temperature gauges
• Alarms for high-low oil pressure, and high water temperature
• Water jet nozzle direction indicator
• Custom wet exhaust muffler system
• Oil transfer pump for engine and transmission
• Manual hydraulic steering pump
• (2) Electric 1500-GPH 12-volt bilge pumps with float switches
• Whale emergency bilge pump mounted in cockpit locker
• In-line 12-volt automatic shower sump pump
• Aluminum 27-gallon holding tank with overboard discharge
• Stainless steel 6-gallon hot water heater – shore power and engine heated
• (2) Heavy gauge aluminum fuel tanks - total 160-gallons
• Acoustic foam-lined engine box insulation and double gaskets on engine box cover with electric lift
• Engine box exhaust fan





ADDITIONAL EQUIPMENT:

Ground Tackle:

Muir electric windlass package:  Flush foredeck anchor locker houses a Muir electric windlass with Delta 22# anchor + 15” SS chain & 150’ anchor rode and stainless steel bow roller.  The windlass can be operated from the helm station or a handheld remote at anchor locker.

• Bow varnished burgee pennant staff with flush socket
• Stern mounted 4 ft. varnished teak ensign pole & socket
• Dock lines
• Fenders
• Deck shower/water outlet with hot & cold mixing valve
• Life jackets
• Hand-held flare kit
• Fire extinguishers
• Kahlenberg trumpet air horn with switch on dash
• Masthead and running lights
• ACR Masthead mounted spot light with helm mounted electric remote control

Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
